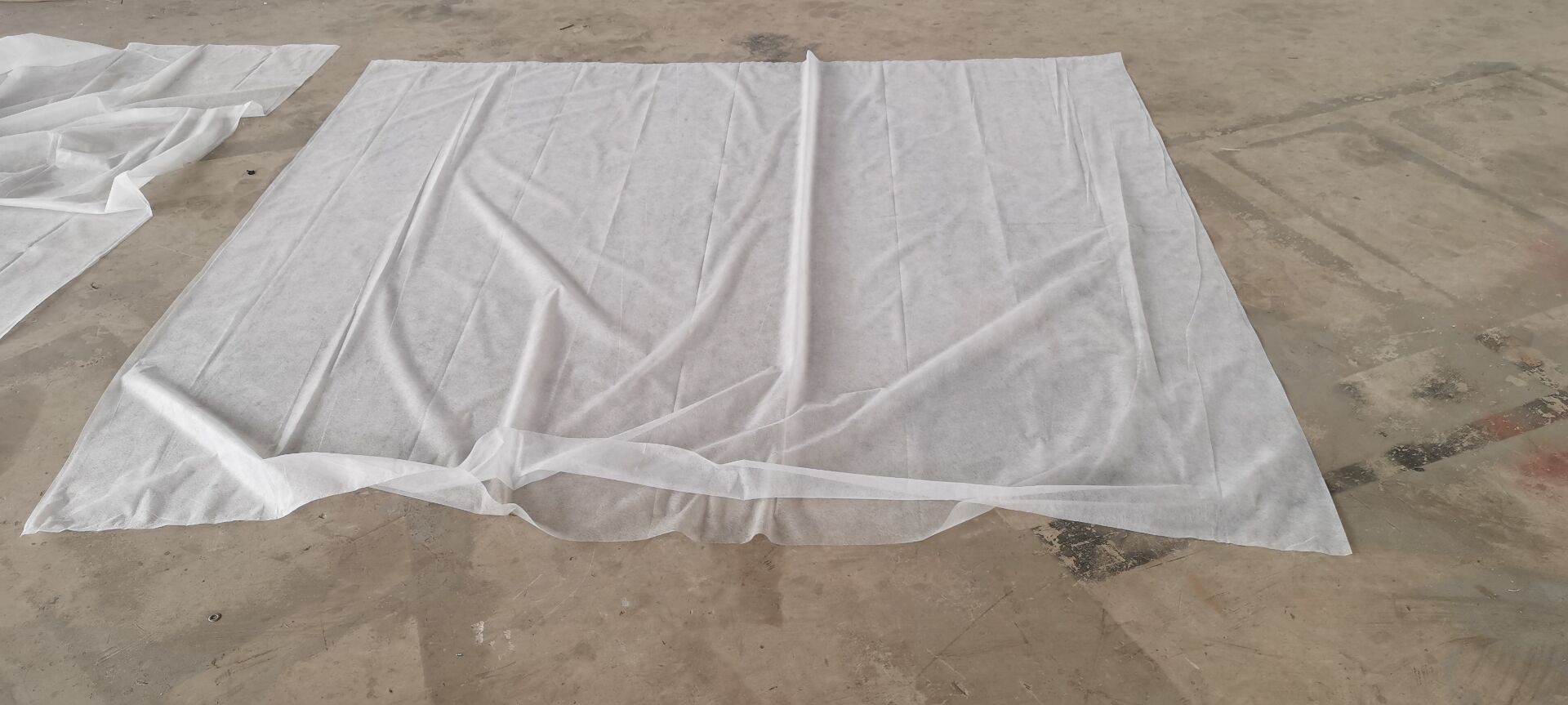

nonwoven quilt cover making machine

nonwoven quilt cover making machine

TOUCH SCREEN

Equipment Introduction

1.1 This machine uses ultrasonic to weld twolayers of nonwoven.

1.2 Equipment working principle:  2 layers nonwoven input →ultrasonic welding→Longitudinalfolding→cutting length automatically→Transverse folding→outputautomatically→Product stacking, the whole line completeautomatically.

1.3 Width of raw material under 2400mm

1.4 Transverse folding: one half , one -quarter,one-eighth

1.5 The machine adopts the cylinder to promotethe material and tension control automatically, without manual operation

1.6 Touch screen control, only need to enterthe data can change the specs, easy to operate.

1.7 Electronic-control is touch screenman-machine interface operation，counting.

1.8 Entire delivery system, strong, durable,non-polluting;

1.9 Electrical wiring specifications andreasonable, elegant, easy to operate.

Technical parameters:

2.1 SupplyVoltage: 380V 50HZ

2.2 Power: 15KW

2.3.Weight:5500kg

2.4.Speed: 0-30 m/ min

2.5.Dimensions: 1450* 3400 * 2300mm

2.6.machine color:silvery white

Equipment configuration list:

3.1  Servo drive: Delta (Taiwan) 12 sets

3.2  Gear motors: Yongkun (Taiwan) 1set

3.3  Motion Controller: Delta (Taiwan) 1 set

3.4 Touch screen:Delta (Taiwan)   1set

3.5  Low-voltage electrical: delixi

3.6  Air shaft: 2sets

3.7  Cylinder:  1set Airtact

3.8 correctiondevice: 2 sets

Installation and terms of Service

4.1  we provide door to door service for domestic customers,foreign customers need to install the machine by themselves. Our engineer atthe request of foreign customers can door-to-door service, but users areresponsible for accommodation, round tickets visa fees and so on (domesticexcept). And pay our engineer 100USD one day （becauseof the virus, now no engineer goes outside）

4.2  The seller isresponsible for equipment packaging costs, use FOB export situation

4.3 Random withcommon wearing parts and special tools

4.4 After leaving Shanghaiport the buyer is responsible for the freight, insurance premiums and unloading

Warranty scope and manner

5.1.1 Since user as the date of buy is responsiblefor one year warranty.

5.1.2 warrantyitem: machine transmission and electronic control system

In the followingcircumstances, our factory is not responsible for warranty, execute collectfees repair:

1. Artificialdamage, such as the machine damage cause by foreign body in fall.

2. Users withoutmanufacturers agreed to repair itself or has been disassembled.

3. Users withoutchanging accessories etc.

4. Customerproduction voltage instability caused electric damage.

5. The userhandling of corruption.

Considerations

6.1 The machine maincomponents should be checked regularly, Such as welding and  cutting bearing working case, filling oil appropriately to ensure that it is workingproperly.

6.2 Periodically checkthe wear of the welding, Appropriate adjust the pressure, In the case ofguarantee welding well, make the pressure minimum.

6.3 Each unwinding traystension should be checked in order to adapt to the production needs.

6.4the cutterpressure should be appropriated, otherwise easily lead to a situation such asknife fight

free parts

 wrench : 1 piece

 cutter : 2 pieces

Quotes and payment

1payment: After 50% of thetotal value is paid in advance by (T/T),

The left 50% should be paid by(T/T) after you check up the finished

machine. And the cargo will bedelivered after all the payment

arrives at our account.

2 The quote is valid: 30 days

3 Delivery Date: Within 30 working days afterreceipt of prepayment from customers

Folded width：under 30cm

material width ：under2400mm
