disposable bibs machine

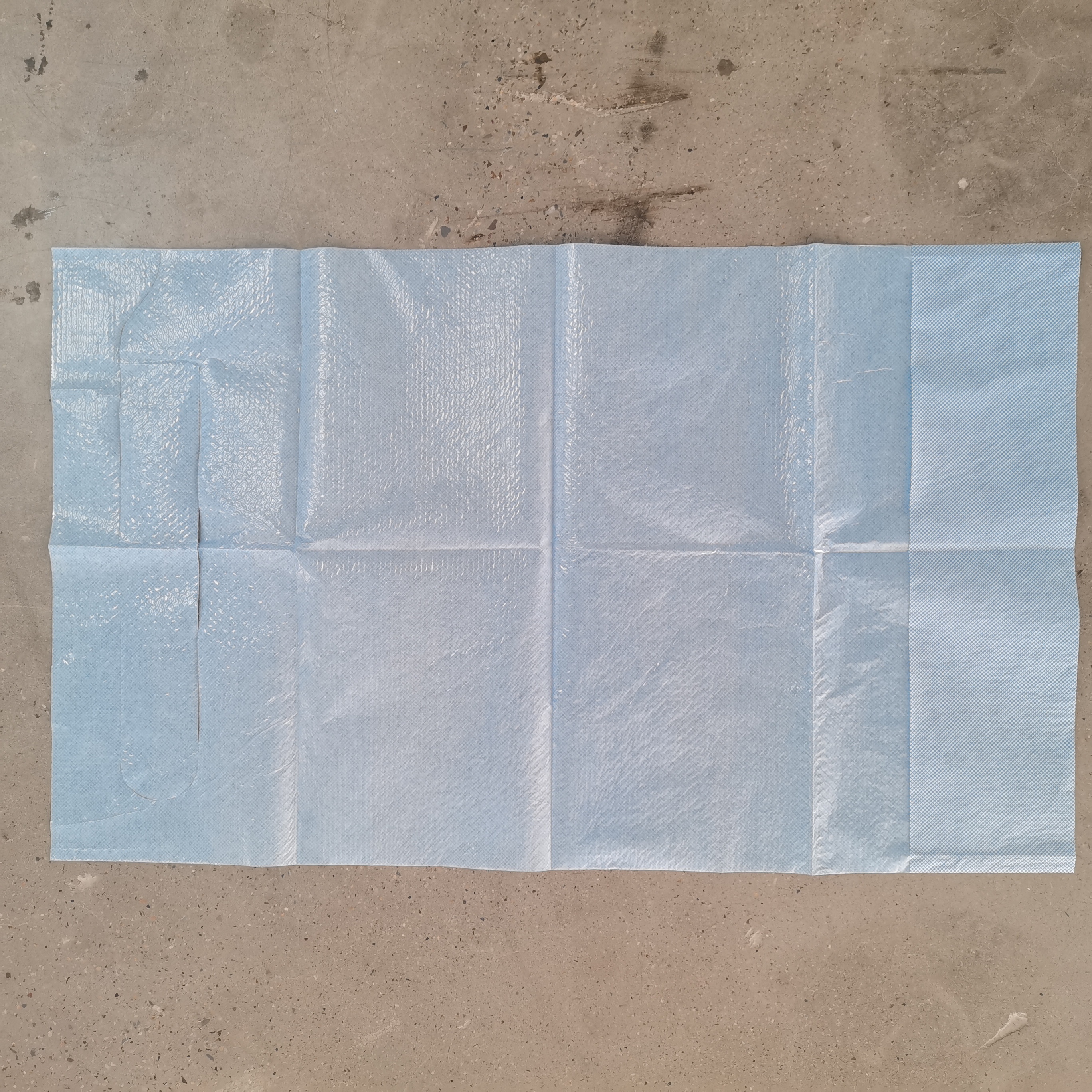

Product’s size:

Width 37cm isfixed, can not be changed

Length 67cm can beadjusted: 57-67cm

Performance Characteristics

The machine is used for producing disposable dentalbibs. First, composite PE and toilet paper, then bibs molding, folding，last stacking. It is a fully automatic productionmachine from raw material supplying to finished product output. With PLC systemcontrol, the stability is high, the failure is low.

Process

Airlaid

Enter-------air heating composite------heating

PE film

weld Edge------productsforming-------width folding------length cutting------lengthfolding-------stacking------products output

Configuration

1	Hydraulic system	1set
2	Gear reducer motor	1set
3	Cycloid pin gear motor	1set
4	Inverter	1set TaiWan Delta
5	PLC	1set Taiwan Delta
6	Touch screen	1 set Taiwan Delta
7	Lower electric device	Xintai
8	air expanded shaft	2 pcs
9	Magnetic tension	2pcs
10	Cylinder	AirTAC
11	Heating part	2sets(one for pocket, one for embossing)
12	Embossing part	1set(steel to steel roller)
13	Auto stop sensor	2pcs autonics
14	Machine frame	Square steel+ iron plate
15	Safety cover	Stainless steel

：MainTechnical Parameters

Power supply	Power	Optimum speed	Dimension	Weight
AC380V/220V	10KW	80-150pcs/min	1155016501600mm	3000kg

Payment:After 50% of the total value is paid in advance by (T/T),

The left 50% should be paid by (T/T) after you check up the finished

machine. And the cargo will be delivered after all the payment

arrives at our account.

Delivered time: 40 working days after confirm theorder

Warrant term: 1 year (not including the wearing parts,such as blade, cylinder, thermocouple etc)
