ALT-ZD2000 Nonwoven（Medical）

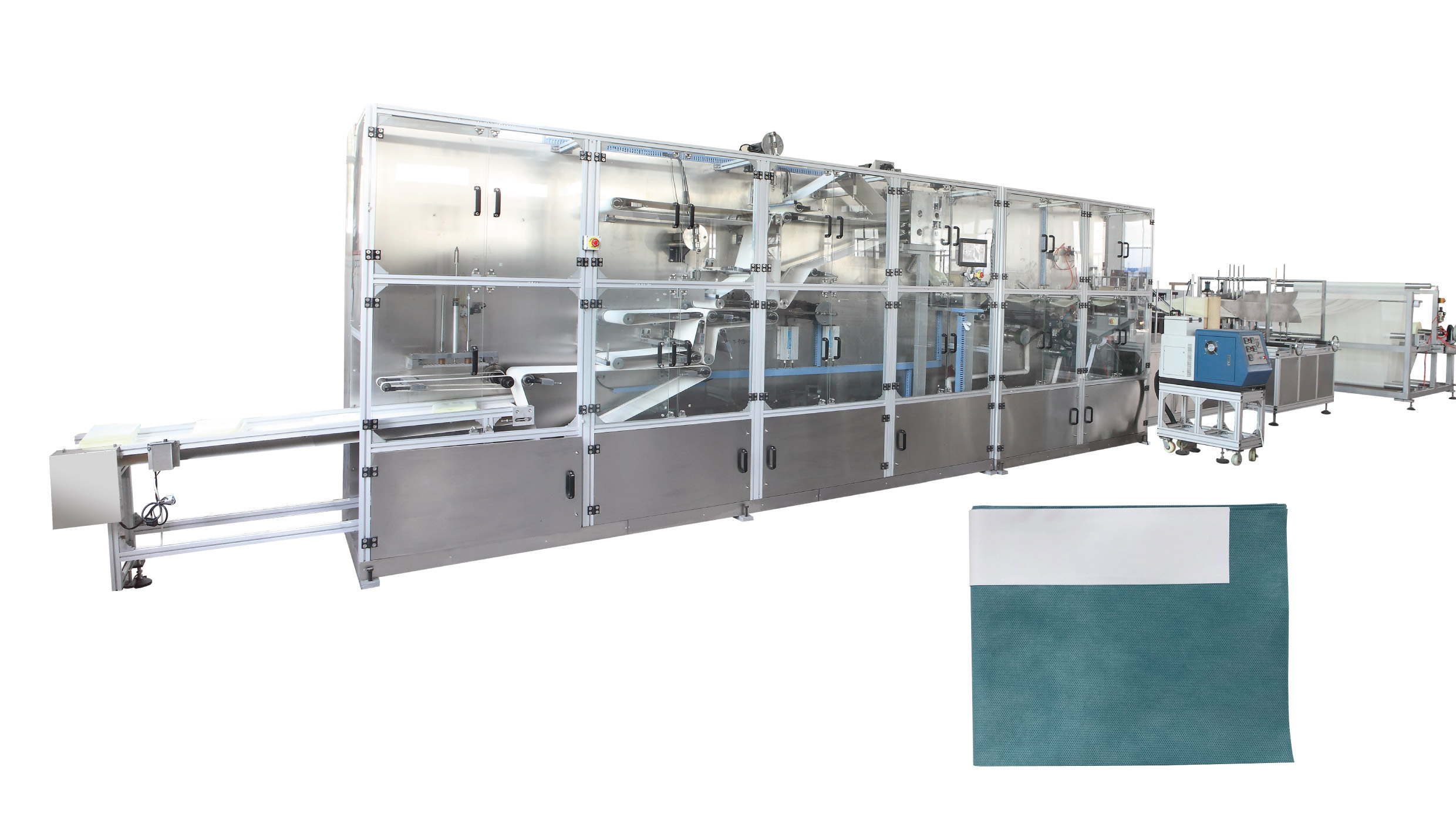

ALT-ZD2000 Nonwoven（Medical）BedSheet  Folding Machine

Equipment Introduction

1 Equipment requirements: The device canprocess all kinds of spunlace non-woven，hot airfabric, hot-rolled fabric; acupuncture cloth, spunbond fabric, SMS, paper-plasticand other raw material.

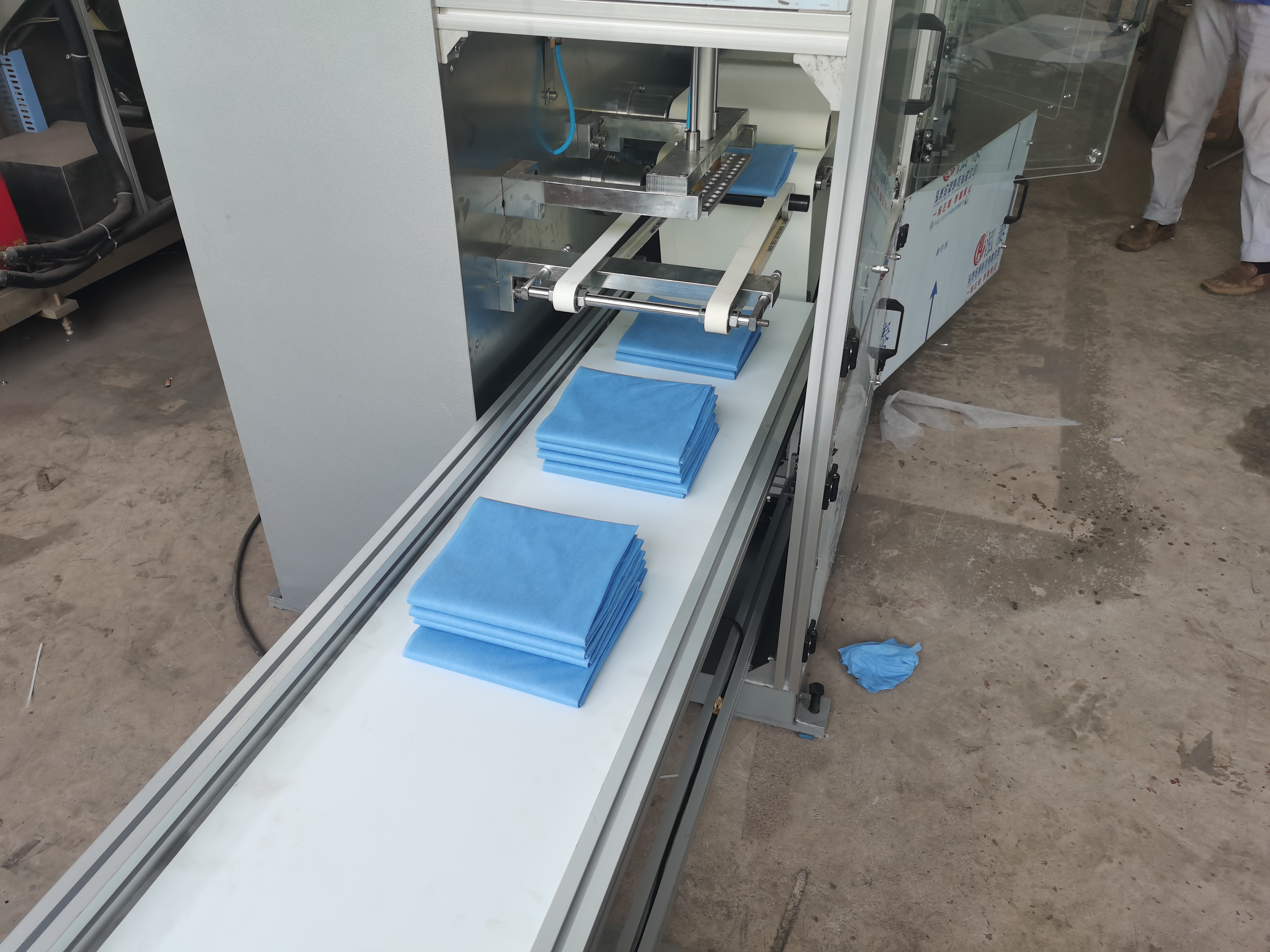

2 Equipment working principle: Longitudinalfolding→cutting length automatically→Transverse folding→outputautomatically→Product stacking, the whole line completeautomatically.

3 Width of raw material under 2000mm

4 Folded width longitudinally arbitraryadjustable, the product Cutting length can be adjusted between 500-3000mm, lengtherror of ± 5 mm.

5 Transverse folding: one half ,one- third, one-quarter, one –sixth, one-eighth

6 The machine adopts the cylinder to promotethe material and tension control automatically, without manual operation

7 All the drives use the imported servo motor,high precision

8 Touch screen control, only need to enterthe data can change the specs, easy to operate.

9 Electronic-control is touch screenman-machine interface operation，counting.

10   Entiredelivery system, strong, durable, non-polluting;

11    Electricalwiring specifications and reasonable, elegant, easy to operate.

Technical parameters:

1 SupplyVoltage: 380V 50HZ

2 Power: 8KW

3.Weight: 4000kg

4.Speed: 0-60 m/ min

5.Dimensions: 10300* 2400 * 2300mm

6.machine color:silvery white

Equipment configuration list:

1  Servo drive: Delta (Taiwan) 6sets

2  Gear motors: Yongkun (Taiwan) 1set

3  Motion Controller: Delta (Taiwan) 1 set

4 Touch screen:Delta (Taiwan)   1set

5  Low-voltage electrical: delixi

6  Air shaft: 1set

7  Cylinder:  1set

Quotes and payment

1payment: After 30%of the total value is paid in advance by (T/T),The left 70% shouldbe paid by (T/T) after you check up the finished

machine. And thecargo will be delivered after all the payment arrives at ouraccount.

2The quote is valid: 30 days

3Delivery Date: Within 30 working days after receipt of prepayment fromcustomers

Folded width：under 30cm

materialwidth ：under2000mm
