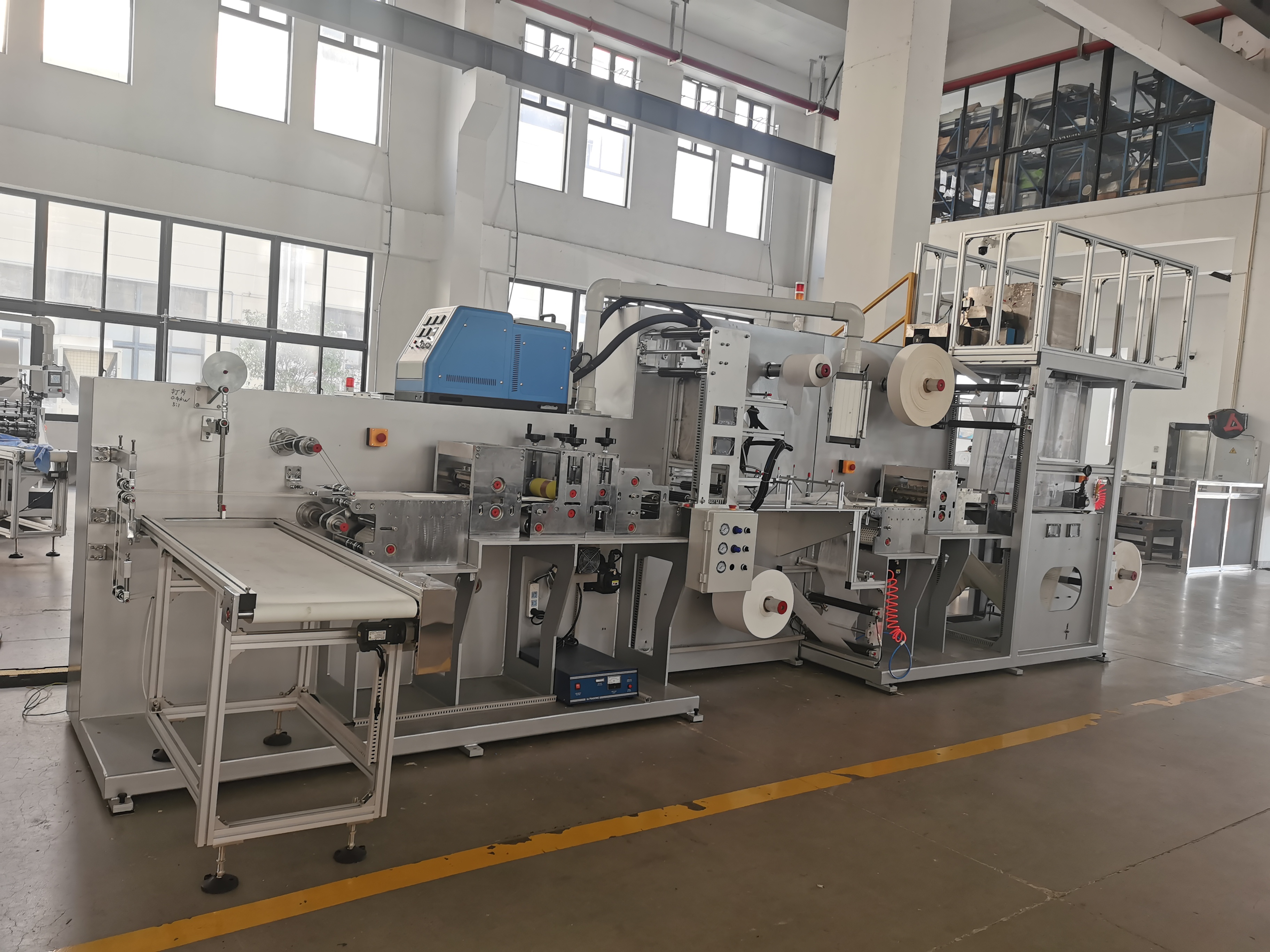

Disposable Abdominal Pad Machine

PERFORMANCE CHARACTERISTICS:

1.   Touch-control,PLC program control, replace only need to enter the length of the data can beextremely simple. Easy to operate.

2.   Adoptsstepless control of the governor which can adjust the thickness and weight .

3.   Thecotton core does not fall off, clearly and firmly.

4.   Thecotton core can be added to the polymer(SAP) quantitative add, weight adjustable.

5.   Thismachine is full servo motor control, the length of any adjustable, highprecision.

6.   Cuttinglength 20-40cm

TECHNICAL PARAMETERS:

1.    Power Supply：380V/50HZ

2.    Power：47kw（Include a hot melt glue machine）

3.    stable  Speed：0-30m/min

4.    Dimension：6500*2500*3700mm

5.    Weight：4t

6.    Yung press：≥0.6mpa  1.2m³/min

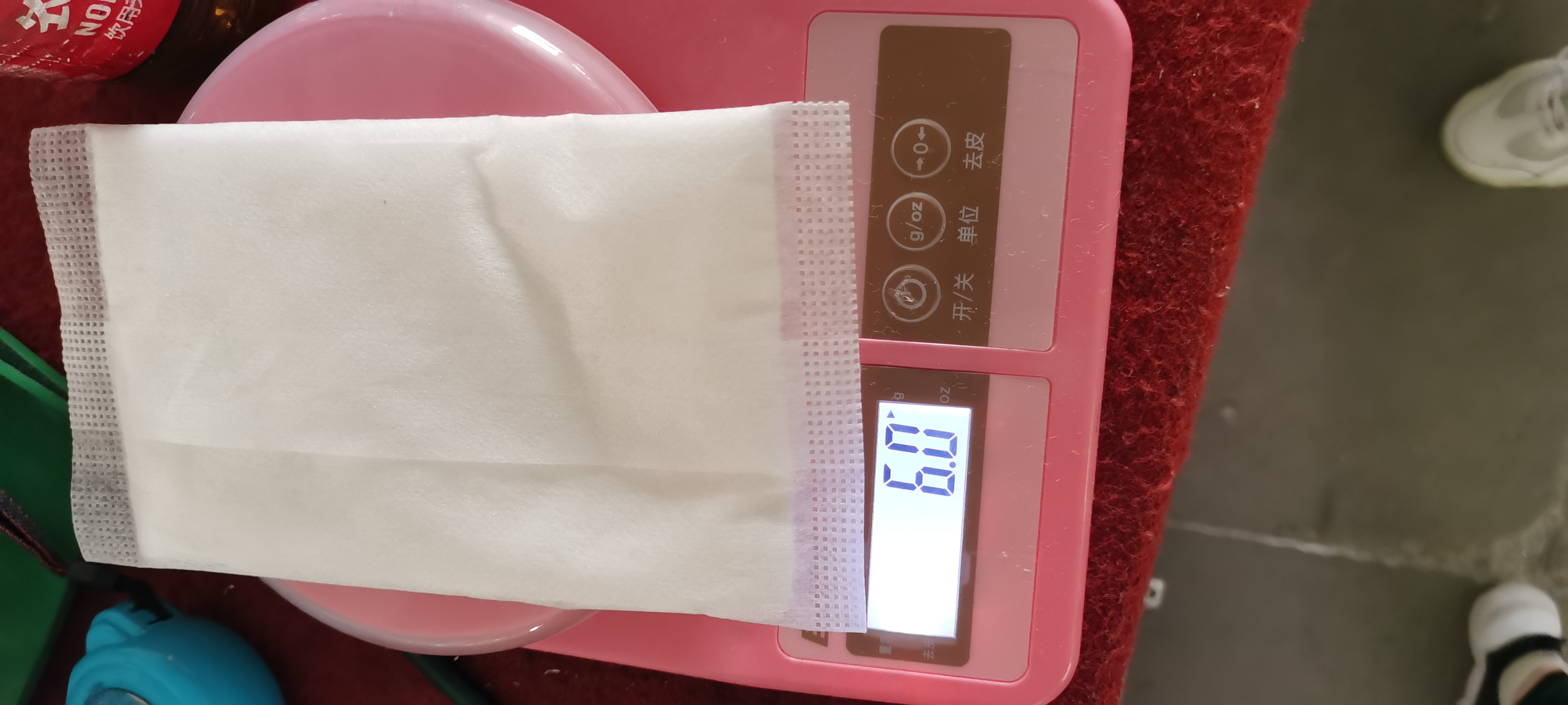

7.    Products’ Specifications：Width（100-200mm）,Length（200-400mm）

8.    SAP weight:10-50g/㎡

9.    Wooden pulp weight:40-110g/㎡

10. Automatic tension control

11. Single SAP applicator

12. Absorbent core preparation unit

13. Absorbent layer cross cutting unit

14. Hot melt gluing unit

15. Finished products cutting unit

COFIGURATION INSTRUCTIONS:

1.5kg Hot melt glue machine :1set(Xinjia)

2.Full servo motor:10 sets (Delta)

3.Discharge air craft:5pieces(ALT)

4 Other Motor: (ALT)

5 Touch screen: 1set(Delta)

6. Motion Controller: 1set(delta )

7 Low Voltage: Delixi or CHINT

8 Bearing: Harbin

9 Cylinder valve: ALT

10  Conveyor Belts: ALT

11Cylinder :AirTAC

12Timing belt: ALT

13No material stop sensors: ALT

SPARE PARTS:

cutting blade：2pieces

Wrench：1set

Delivery time:100days
