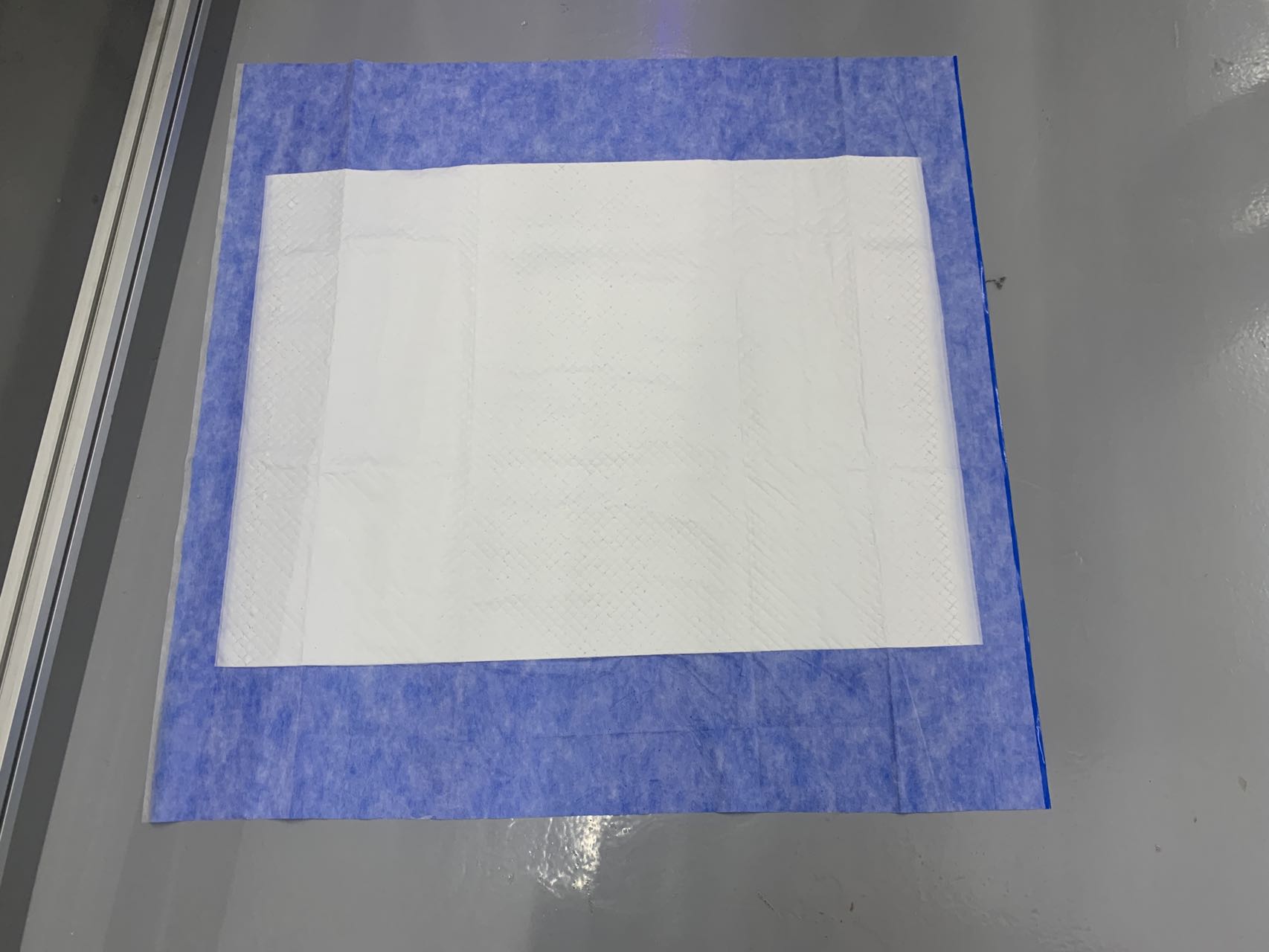

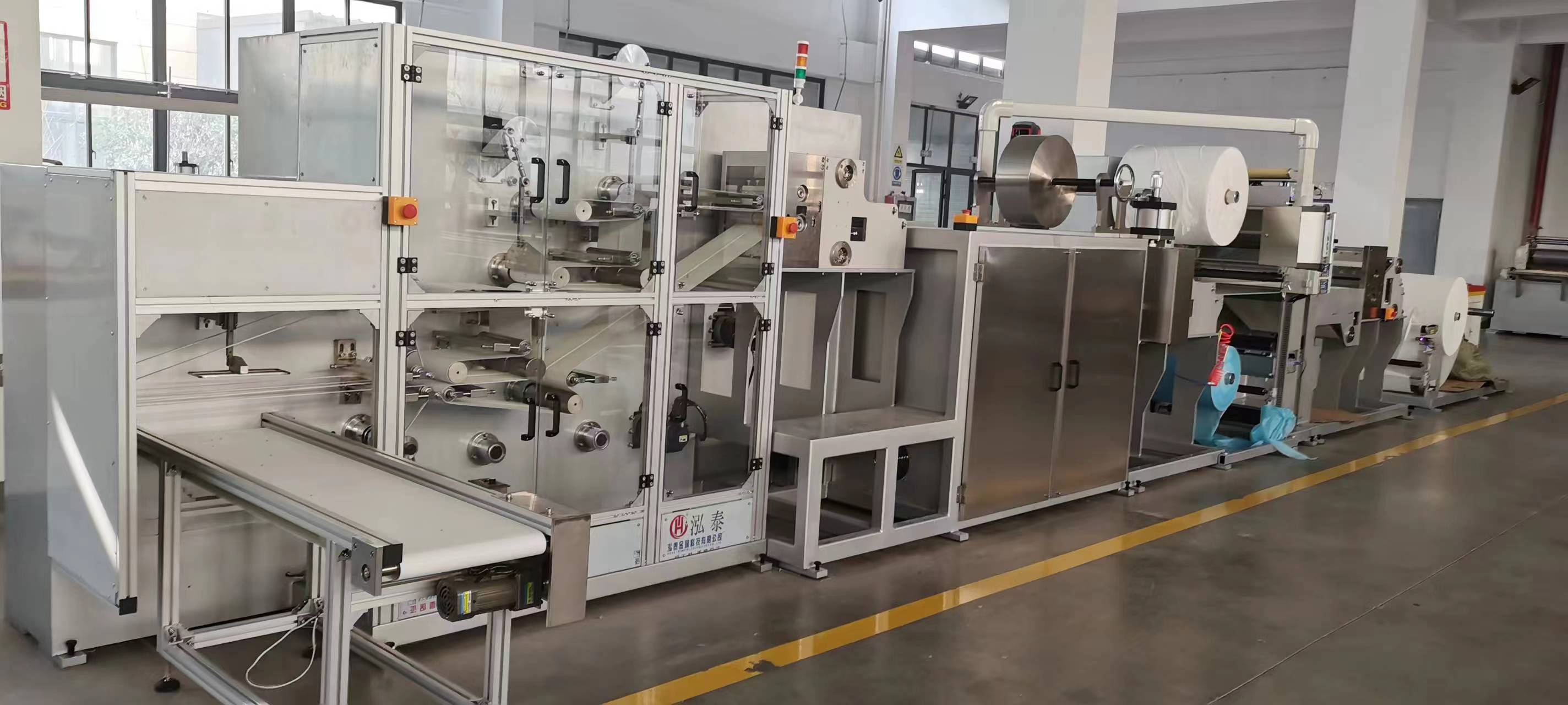

3 layer under pad machine

PERFORMANCE CHARACTERISTICS:

1.   Touch-control,PLC program control, replace only need to enter the length of the data can beextremely simple. Easy to operate.

2.   Thismachine is full servo motor control, high precision.

TECHNICAL PARAMETERS:

1.    Power Supply：380V/50HZ

2.    Power：40kw（Include a hot melt glue machine）

3.    stable Speed：70m/min

4.    Dimension：Mainmachine：12000*3000*2200mm

5.    Weight：11t

6.    Yung press：≥0.6mpa  1.2m³/min

7.    Specifications：Width（400-600mm）,Length（400-1000mm）

COFIGURATION INSTRUCTIONS:

1.10kg Hot melt glue machine :1set（Made in China）

2.Full servo motor:6sets（Delta）

3.Discharge air craft:3pieces

4.other Motor: Made in China

5. Touch screen: 1 pcs (Delta)

7. Motion Controller:1pcs

8 Low Voltage: Made in China

9 Bearing: Harbin

10 cylinder valve: Made in China

11 Belts: Made in China

12 edge controller: 3sets

SPARE PARTS:

1.Before cutting blade：2 pieces

2.After cutting blade：2pieces

3.Wrench：1set
